With such a huge range of different types, styles and designs of horse bits, it can be bewildering picking the right one, so I’ve put together this handy guide to the main types of bit and which horses they are best suited to. A bit is the piece of tack that goes inside the horse’s mouth and sits in the space between their front and back teeth. They are usually made from types of metal such as stainless steel or copper, but they can also be made from synthetic materials such as rubber (more on this later).

Horse bits attach to a bridle and the reins and help the rider control the horse’s speed and direction. Horse bits come in many styles, materials, shapes and sizes, which can make choosing the most suitable one confusing. Important things to consider before choosing a bit include:

  • Size and shape of your horse’s mouth
  • How well-schooled your horse is
  • The level of your riding and how experienced you are. Do you, for example, have an independent seat?

The aim is to select the mildest bit that still allows for clear communication with your horse. Bear in mind that a rider with soft hands using a more severe bit will be a kinder experience for the horse than a rider with heavier hands using a soft bit. It’s about getting the balance right for the two of you — and finding it could mean enlisting the help of a bitting consultant or an experienced trainer whose opinion and knowledge you trust.

Horse bits: types of mouthpiece

The mouthpiece is the part of the bit that sits in the horse’s mouth, and it comes in a variety of different types. These can be:

Straight-bar mouthpieces

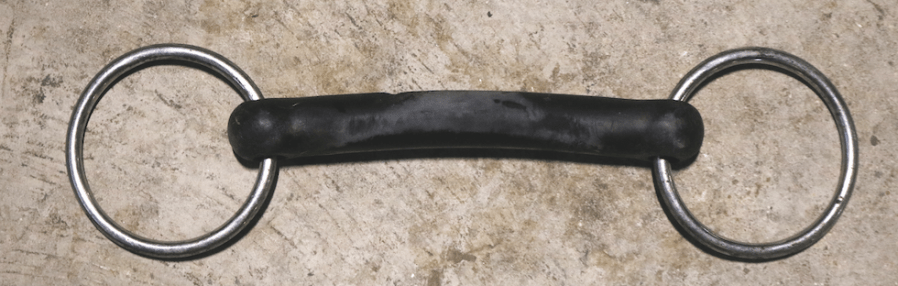

Pictured is a straight-bar loose-ring snaffle bit

A straight-bar mouthpiece

As the name says, these are a solid bar of metal or other material such as rubber or plastic. Straight and rigid Mullen Mouth bits exert steady and even pressure on the tongue and put less pressure on the tongue edges compared to jointed bits. The stronger the rein the more pressure is directed onto the tongue and lower jaw bone.

Mullen Mouth bits

These horse bits can also be straight and flexible, or have a port. The latter has no joint but does have a slight curvature in the centre in order to accommodate the horse’s tongue, meaning no pressure is applied to it.

Single-jointed mouthpieces

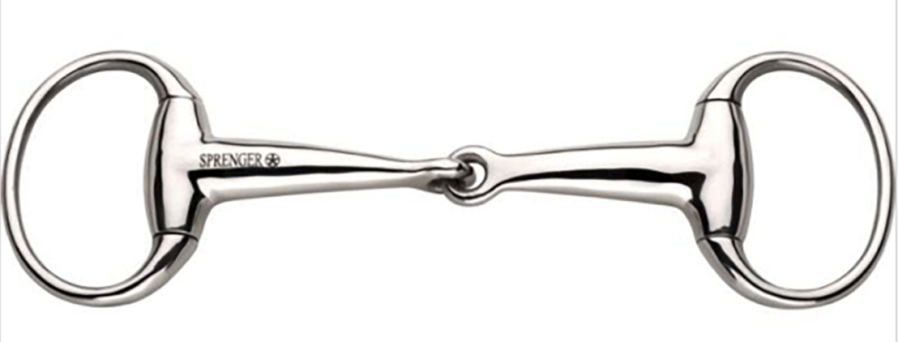

Pictured is a single-jointed snaffle

A single-jointed fixed snaffle

Single-jointed horse bits produce a ‘nutcracker’ pressure in the horse’s mouth. Nutcracker action occurs when the reins are applied and the bit forms a V-shape in the mouth, applying pressure on to the edges of the tongue.

Double-jointed mouthpieces

Double-jointed horse bits have two pieces joined by a link, which distributes pressure from the rein aids over a wider surface area onto the tongue. Styles of double-jointed bits include ported (with a raised portion in the centre), French link, Dr Bristol and ball double-jointed mouthpieces. Each operates differently, with double-jointed considered milder than single-jointed.

Important things you need to know

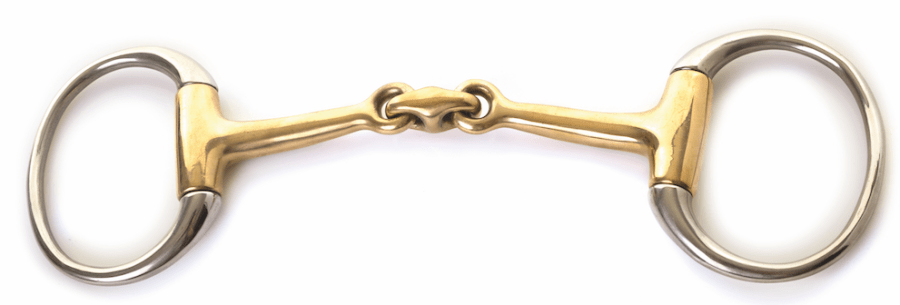

Pictured is a double jointed mouthpiece

A double-jointed mouthpiece

Horse bits come with different textures of mouthpiece, such as twisted or textured mouthpieces. Smooth mouthpieces are softer than textured or twisted ones. The thickness of the mouthpiece in terms of the horse’s comfort depends largely on the size and shape of the individual horse’s mouth, but in general, thicker mouthpieces are believed to be kinder than thin bits.

Horse bits: snaffles

Snaffle bits are one of the simplest bit designs, and consist of a mouthpiece and rings. The mouthpiece can be jointed, straight-bar or mullen mouth. It’s often thought that snaffles are all mild bits, but this isn’t always true. While the pressure is more direct in the snaffle, as opposed to working with leverage, some mouthpiece designs accompanied by heavy hands on the reins will make it more severe.

There are several different types of snaffle bits:

D-ring snaffles

The rings on a D-ring snaffle are D-shaped rather than circular. The shape does not allow the bit to rotate, and also applies some lateral pressure on the horse’s mouth.

Eggbutt snaffles

Eggbutts are mild as they do not pinch the side of the mouth. The mouthpiece does not rotate, which can feel more comfortable to some horses.

Full cheek snaffles

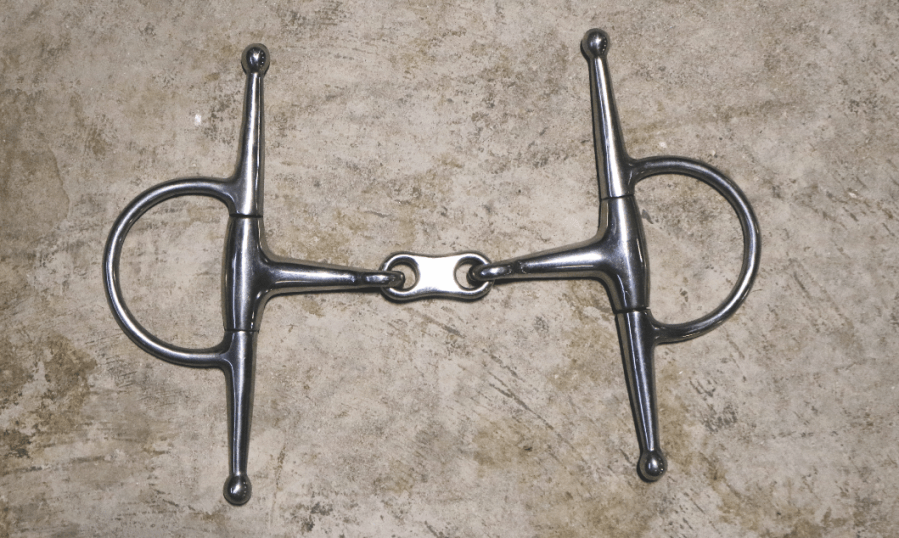

Pictured is a French link snaffle bit with a full cheek

A full cheek

Full cheek horse bits have long arms on either side and the ring is attached to the arms. This helps with lateral guidance and keeps the bit’s position in the mouth consistent. It is often used with young horses to help teach them steering without the bit being pulled through their mouth.

Loose-ring snaffles

The mouthpiece may slide on the full, loose ring, so that it rests in the most comfortable position for the horse, rather than being fixed in place, which can encourage the horse to relax its mouth and chew the bit.

Hanging cheek snaffles

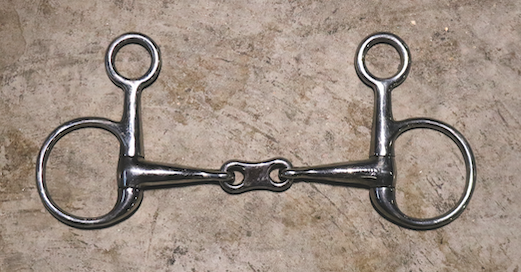

Pictured is a hanging cheek French link snaffle

A hanging cheek

These have single round cheek rings to which the reins attach, while the bridle attaches to a piece about half an inch higher than the ring, giving the bit a very mild amount of leverage (poll pressure).

Loose-ring or fixed snaffle?

Choosing between these snaffle types will come down to what best suits you and your horse’s requirements. Loose rings transmit the pressure of the reins directly onto the tongue and the lower jaw, without any leverage on the neck. The moveable rings may help to slightly compensate and balance unsteady/inexperienced rider hands too. The horse may also be able to slightly lift the bit in their mouth by stretching the tongue and evading too strong a pressure from rein aids in the short term.

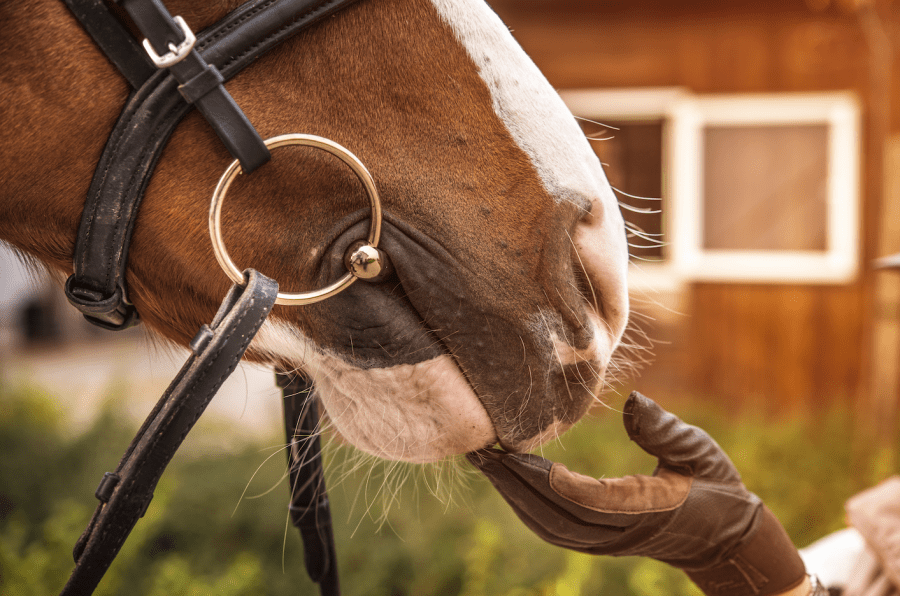

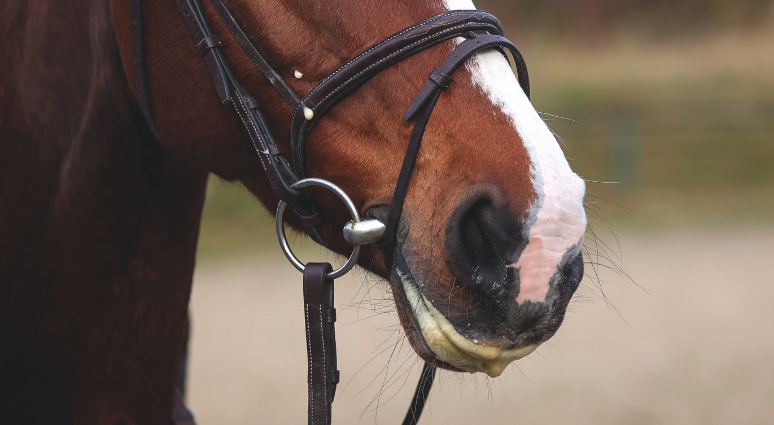

Pictured is a loose ring snaffle

A loose ring snaffle

Loose rings are suitable for all horses doing all activities, starting from the early days of their ridden career and onwards. Fixed rings also transmit rein pressure directly on to the tongue and the lower jaw without leverage on the poll, but they do this in a more direct way. Being fixed means these horse bits stay steady in the mouth, while smooth edges make it suitable for horses with sensitive mouth corners.

A fixed ring/cheekpiece is often recommended for horses that like to play with their bit, giving the rider an unsteady contact, or who fall out on a turn or when approaching a jump.

Horse bits: curbs

Curb bits work by applying indirect pressure on the horse’s mouth. This means you use less pressure on the reins to reach the same pressure on the bit that you would with a snaffle. This makes it more severe depending on how much force is placed on the reins. The length of the shank also increases the severity, as longer shanks mean more pressure on the horse’s mouth.

Other than shank sizes, there are different shapes as well. The straighter the shank, the less warning the horse has before the pressure hits it. Some are loose-jawed — that is, they let the mouthpiece rotate more — while others are not. Curb horse bits also come with a curb chain, which runs under the chin and applies pressure on the chin groove.

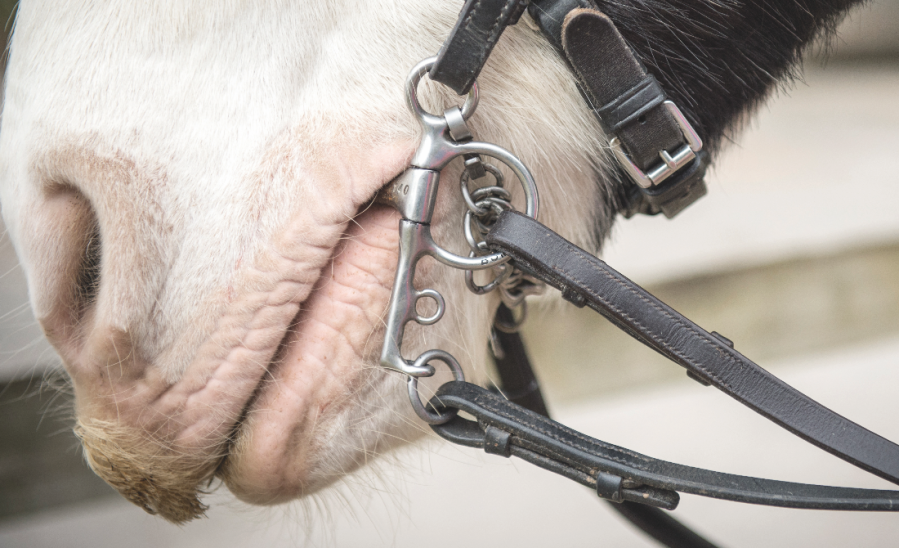

Pictured is a Pelham horse bit

A Pelham with two reins

Types of curb bit include:

Weymouth curb

These are often part of a double bridle ensemble (more on this below) and usually have a solid mouthpiece, either straight or with a slight port. They are used alongside a snaffle.


The Pelham is almost like a double bridle in that it allows for two sets of reins to be used at once, but it is only one mouthpiece. It’s often used to transition a horse to a double bridle.

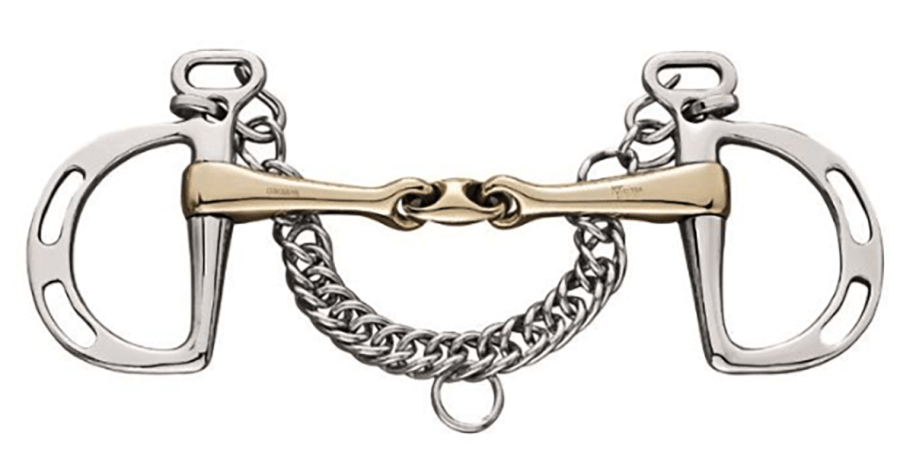

Pictured is a kimblewick

A Uxeter slotted kimblewick

These have a D-ring like the D-ring snaffle, as well as a curb strap or chain. The further the rein slides down the ring, the more poll pressure is applied. A Uxeter slotted kimblewick has slots in the D-ring offering different holes to place the reins through — the higher the rein is applied, the less severe the leverage.

Three pressure points of a curb

Horse bits with a curb act on three different parts of the horse’s head:

  1. Over the tongue into the bars
  2. By lever action of the lower cheeks on the poll
  3. Through the curb chain on the chin groove.

Working in this way enables the rider to give clearer instructions and to have more control over strong and powerful horses. However, a correct basic education and level of training (both horse and rider) is necessary when using these bits. A hand that is too strong, for example, will be particularly unkind if applied to a bit with such leverage on the poll and lower jaw.

A curb chain guard is recommended, too, in order to protect the sensitive chin area which is only covered by a thin layer of skin.

Horse bits: gags

Pictured is a Cheltenham gag

A Cheltenham gag

Gags work like snaffle bits but offer some leverage. They apply some pressure on the horse’s poll, depending on where the reins are attached. Different types of gags are:

Cheltenham gag

A Cheltenham gag consists of a mouthpiece with two rings at either end, as in a snaffle, but each ring has two hole — one at the top and one at the bottom — through which the gag cheekpieces run in order to connect it to the bridle and reins.

Dutch gag

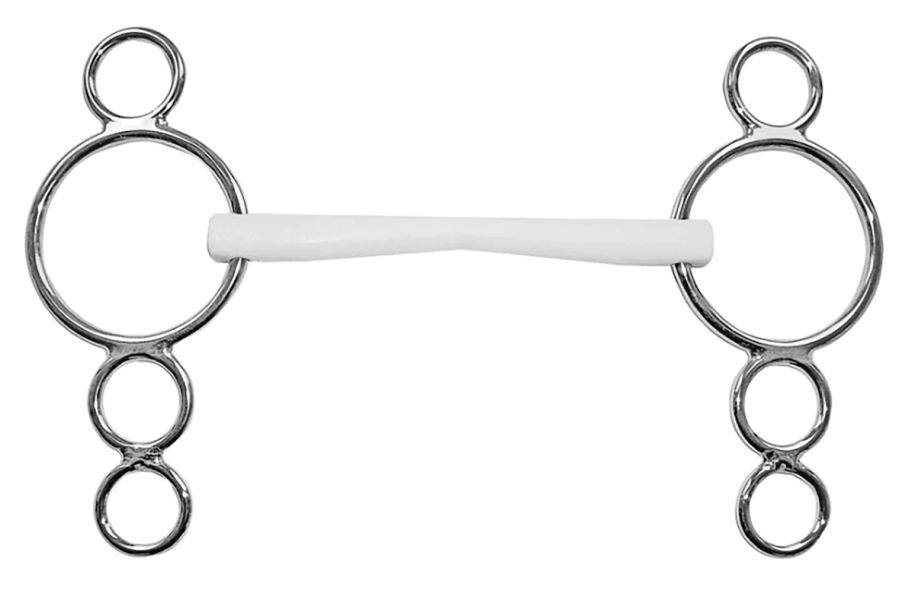

Pictured is a Dutch gag

A Dutch gag with three rings

A Dutch gag (or three rings) bit, consists of three or four rings. The ‘big’ ring is attached to the mouthpiece, with one smaller ring on top to attach the bridle’s cheekpiece. There are then a further one or two small rings beneath the ‘big’ ring. The reins can attach to any of the rings (but not the very top one) according to how much poll pressure you require. The lower the ring, the more leverage you have over the poll.

Horse bits: how gags work

When applying the reins to a gag, pressure is distributed from the tongue on to the lower jaw and the poll. This enables a rider to have more control over strong horses that evade by putting their heads up, as the horse normally reacts to the gag’s leverage by lowering the head in order to avoid the pressure.

This effect is even more significant in a three-ring gag, as the leverage effect is increased by the side part. Optimum effect is achieved by using two sets of reins: the main rein stays on the largest ring, acting on the tongue and lower jaw, while the second rein is on a lower ring and can be used to apply poll pressure when required. These are best suited to experienced riders with a sensitive hand.

Double bridles

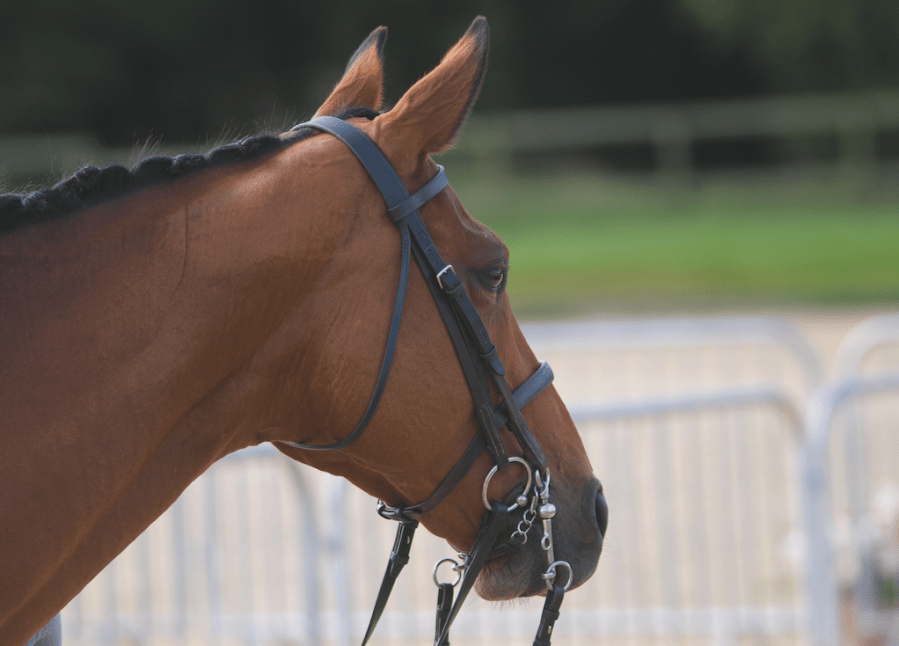

Double bridles are made up of two bits: a snaffle in the form of a bradoon and a curb (see main image, top). The double bridle has the effects of both snaffles and curbs on the horse, with pressure on the bars and mouth from the snaffle bit, and on the chin, poll, tongue, palate and bars from the curb.

In the higher levels of dressage, the idea is to ride on the bradoon most of the time, engaging the curb only to encourage collection, making it a useful tool for refining control. In the wrong hands, it can be severe and harmful. If you haven’t seen it yet, we have more information about double bridles and how they work here.

Horse bits: use with caution

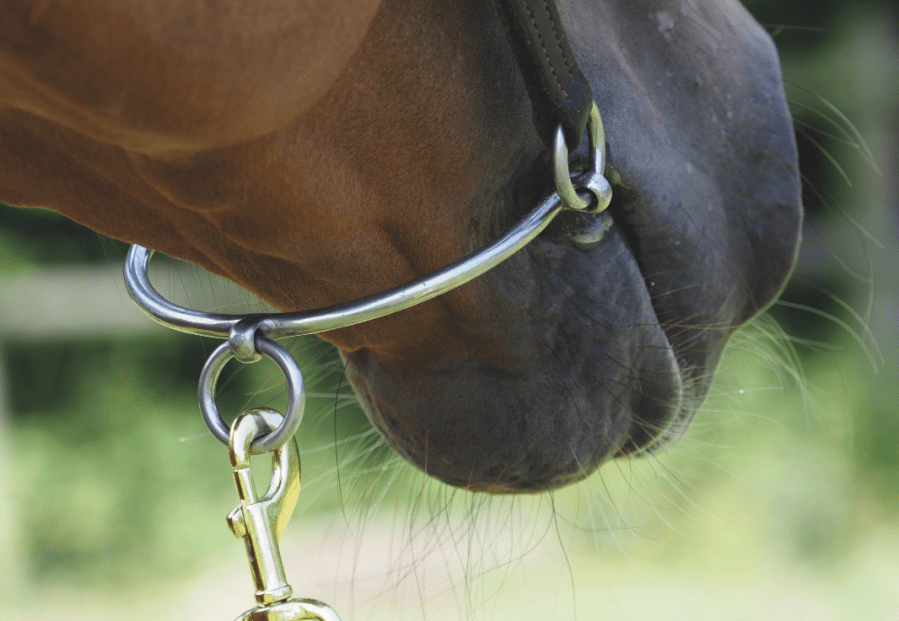

Pictured is a Chifney bit, which should never be ridden in. These horse bits are only for leading horses

A Chifney bit is for leading horses only

Remember, it’s not always as simple as saying a bit is more severe than another because, while this is the case in the literal sense, a ‘soft’ bit can be more severe and unkind to a horse when used by a rider with heavy hands, compared to a rider with kind hands using a ‘severe’ bit.

There are other types of horse bits not listed here, including more specialised ones or bits intended for behavioural correction or very sensitive mouths. One such type is the Chifney bit, which is used to lead horses from the ground, including horses that are prone to rearing, or those who need more control such as stallions. A Chifney bit should never be ridden in.

Regardless of their purpose, horse bits come into contact with a highly sensitive part of the horse’s body. Even the gentlest bits can cause pain and discomfort when the person on the other end of the reins is using them heavy-handedly. This is the key message that every horse owner and rider should know and keep in mind when choosing which bit will best suit you and your horse.

Which horse bit is best for what?

Because bits work in different ways, you can help — or hinder — any issues you have by choosing a bit type accordingly. Of course, you should rule out any discomfort being caused by another part of your tack or in the horse’s body before assuming the bit is the problem. Horse bits manufacturer Sprenger advises the following:

Horses with a sensitive mouth

A single-jointed bit means riders can give softer aids via the reins and are particularly suitable for horses that do not take the contact confidently.

Horses who occasionally pull

A double-jointed snaffle is ideal for horses that occasionally pull against the hand, but are too sensitive to be ridden in a stronger bit.

Horses who lean or evade the bit

A straight and rigid Mullen Mouth can be used for horses that dodge downwards and lean on the bit, or evade the rein and tend to get strong.

Horses who get strong

A straight and flexible Mullen Mouth can suit horses who become strong or unresponsive when working on the flat, or approaching a jump. These bits are usually accepted well by horses who dislike double-jointed bits.

Horses who have a big tongue

A Mullen Mouth with port allows more space for a fleshy tongue to sit underneath it. This bit can also correct issues such as horse’s putting their tongue out to the side of their mouth when worked, or getting the tongue over the bit. This bit type is also particularly suitable for horses who resist their rider’s hand.

Designers of horse bits

Sprenger horse bits

These horse bits are made from Aurigan, an alloy of copper, silicon, and zinc which has been developed specifically for using in horses’ mouths. The manufacturers claim that using Aurigan helps your horse become more attentive and relaxed, improving the connection between horse and rider. The range was developed with horse mouth conformation in mind. Research found the volume of the inside of the mouth was less than previously thought, leaving much less room for the bit. Sprenger used this information to develop their KK range of bits. Read more about it here.

Informed Designs, by Hilary Vernon

This range of horse bits is made up of English bits designed and carefully constructed to complement the conformation of the horse’s mouth to improve comfort and communication. Informed Designs is inspired by the theory that a comfortable horse will be a more relaxed horse and therefore a less resistant horse. The range includes snaffles, pelhams, doubles, daleheads, Liverpools and butterflies, with a variety of cheeks on these mouthpieces available. View the range here.

Abbey England

These horse bits are made in the UK and there are more than 200 different bit patterns in stock. The range includes snaffles, gags, pelhams, double bridles, driving bits, and hackamores. These horse bits are available in various materials including copper, stainless steel, sweet iron, rubber and vulcanite. They are made-to-measure bits which can easily be customised from existing parts for comfort and quality. See the range here.

Nathe horse bits

These horse bits are made in Germany from a patented plastic material, and claim to offer a higher degree of comfort and control. The secret of their effectiveness and flexibility is said to be a unique mouthpiece, protected by a worldwide patent. Each bit has a stainless steel safety wire running through the mouthpiece for total security. They encourage salivation and are kind to the tongue, so are ideal for training young horses. Try the range here.

Neue Schule horse bits

Most Neue Schule bits are made from Salox. This range of dressage and competition bits are all designed with the shape of the horse’s mouth in mind and the use of Tranz lozenge for comfort and communication gives even pressure over the tongue and away from the outer edges where the horse is more sensitive. Learn more here.

Myler horse bits

Designed by the Myler brothers, this range of horse bits claims to create a kinder, more of effective way of communication with your horse. The bits have a forward-curve shape to give the horse more tongue room to allow for swallowing. Myler bits have a no-pinch action and each side moves independently to make rider aids clearer.

Some of the horse bits in this range come with slots in the cheeks. The top slots work in a similar way to a full cheek bit with keepers holding the mouthpiece off the tongue and steady — until the rider uses the reins. The bit returns to its original position once the rein aid is relaxed making the reward much clearer to your horse. Using the slots also gives some poll pressure, encouraging a horse to flex from the withers.

The range of Myler horse bits is split into three levels depending on your horse’s level of training. Level one is designed for young horses at the beginning of their training; level two is for horses with a basic training; level three is designed for more experienced horses. See the range here.

Main image of horse wearing a double bridle is by Shutterstock. Other images by Shutterstock, Sprenger, Your Horse Library/Kelsey Media/Mel Beale
